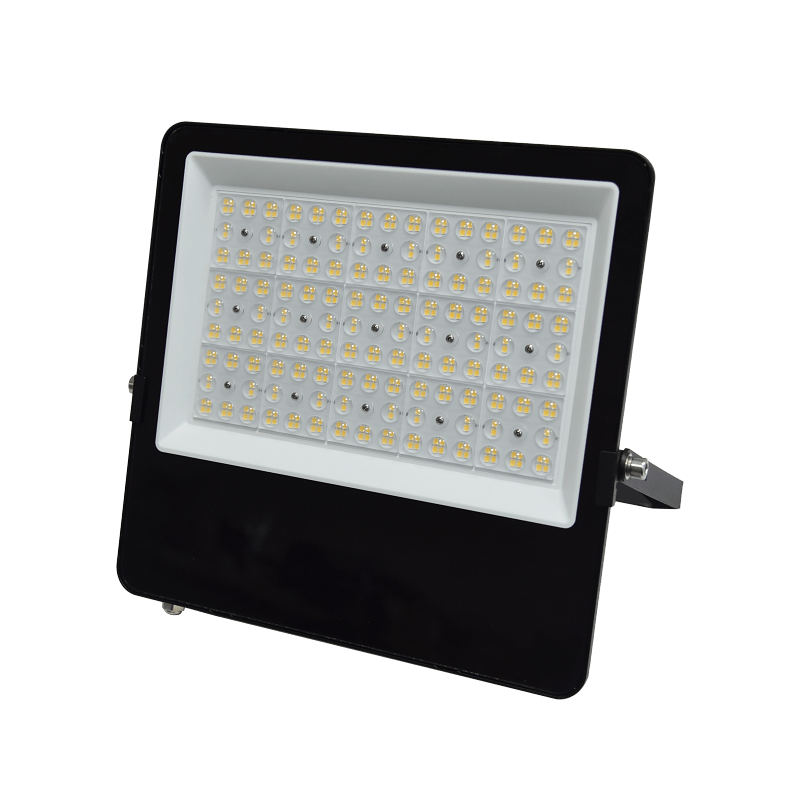

LED Architectural Flood Light has a beautiful profile design intended for outdoor architectural lighting, applications, combines the latest in LED technology including weather tight waterproof LED driver and thermal management. high-performance illumination that lasts 50,000HRSIts ideal for replacing 50-300W metal halide, with typical energy savings of 80%.
APPLICATIONS
Bridges, external buildings,Parks, courtyards, advertising lights.
Specification Features
· High performance die-cast aluminium 50W-300W flood light, suitable for industrial applications
· Anodized surface, delicate and elegant appearance
· High efficiency up to 145Lm/W
· Excellent cost performance

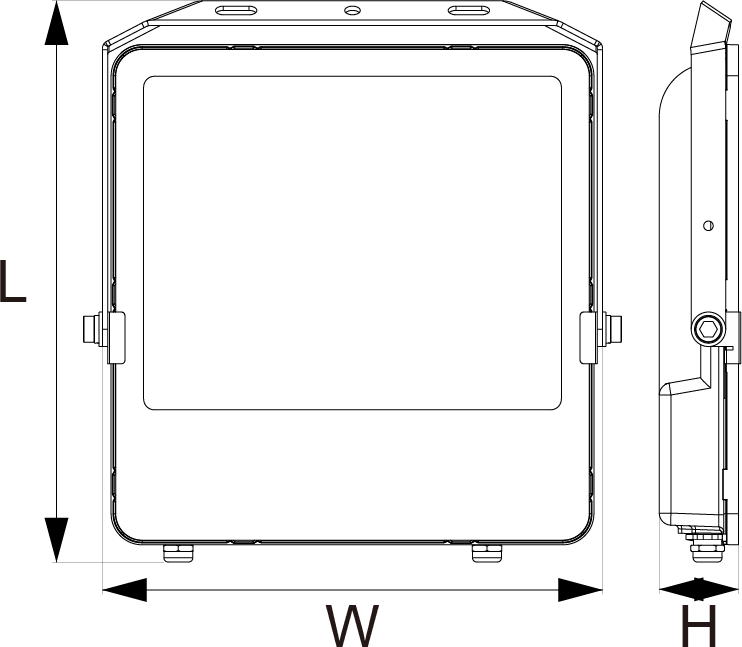

DIMENSION
 |
Catalog No. | Dimension（ L*W*H ） |
| LEDTG50W016 | 224*180*45mm | |
| LEDTG100W016 | 242*260*47mm | |
| LEDTG150W016 | 326*290*47mm | |
| LEDTG200W016 | 351*340*48mm | |
| LEDTG300W016 | 393*440*49mm |
LIGHT DISTRIBUTION
PARAMETER TABLE
|
Item description |
LEDTG50W016 |
LEDTG100W016 |
LEDTG150W016 |
LEDTG200W016 |
LEDTG300W016 |
|
Input voltage[VAC] |
100-277V AC |
||||
|
Input frequency[HZ] |
50/60 |
||||
|
Input wattage[W] |
50±10% |
100±10% |
150±10% |
200±10% |
300±10% |
|
Power factor |
>0.95 |
||||
|
Voltage[V] |
193 |
246 |
|||
|
Current(reference) [A] |
0.24 |
0.39 |
0.58 |
0.77 |
1.15 |
|
Wattage(reference)[W] |
47±5% |
94±5% |
141±5% |
188±5% |
280±5% |
|
Power efficiency |
94% |
||||
|
Luminous flux[Lm] |
7000 |
14500 |
21750 |
29000 |
42000 |
|
Colour temperature[K] |
3000-5700K |
||||
|
Colour rendering index[Ra] |
70/80 |
||||
|
Lumen maintenance(2000h)[%] |
98 |
||||
|
Beam angle[H,V] |
60°,70°,90° |
||||
|
Chip |
Zhaochi 2835 |
||||
|
Average life[h] |
50000 |
||||
|
IP |
IP65 |
||||
|
Work environmental temperature[℃] |
-25℃-45℃ |
||||

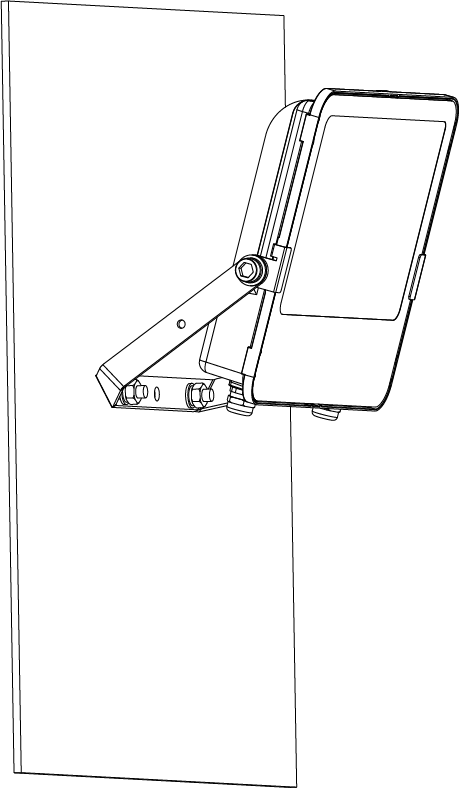

INSTALLATION
 |
1. Mount two Expansion Screws on the wall according to the distance of bracket holes. 2. Put the mounting bracket onto the Expansion Screws and tighten them with washers and bolt. 3. Connect the power cord. 4. Adjust the angle required. |
