Custom Cob Street Light

Home / Product / LED Street Light / Cob Street Light
Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light
  • Cob Street Light

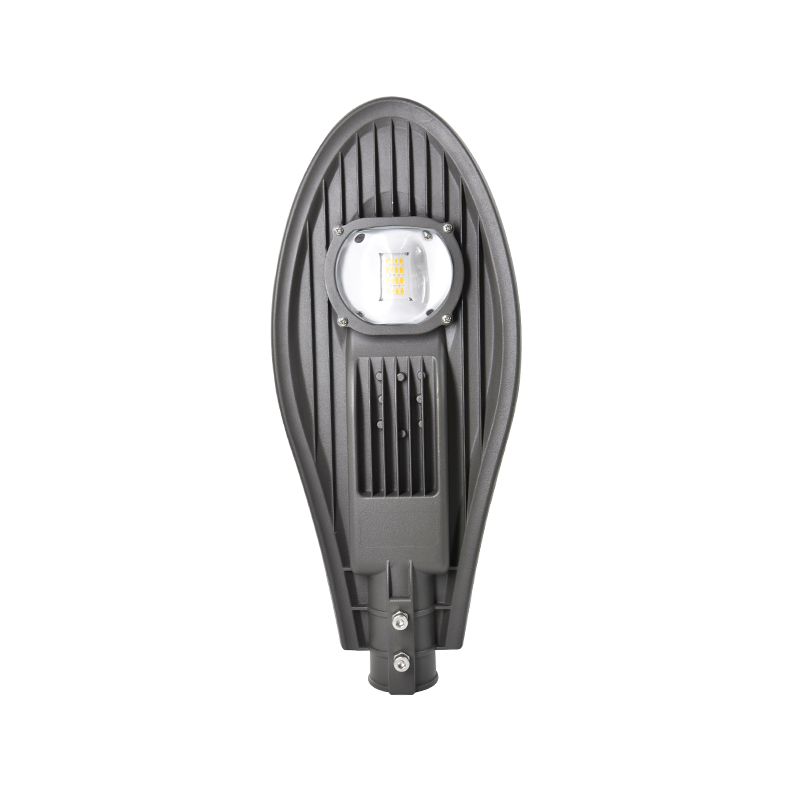

Cob Street Light

1. Die-casting aluminum body with elegant appearance.
2. UV-cut coating surface, anticorrosive and moth-proofing.
3. Used high borosilicate glass lens to ensure long lifespan.
4. UVL driver and Cree3030 chip to ensure super long lifespan and system stability.
5. Shell protection: IP65
6. Applications For road,square and docklig hting,etc .
7. LED 100W street light could replace 150W /250W HPS and MH lamp。
Contact Us Shopping Cart Inquiry Download
  • PROJECTEDLUMENMAINTENANCE
    OPERATING HOURS
    Ambient Temp 0 25,000 50,000 100,000
    25℃/77℉ 1.00 0.98 0.97 0.95
    40℃/104℉ 0.99 0.95 0.90 0.85

    LUMINAIRE AMBIENT TEMPERATURE FACTOR(LATF)
    AMBIENT TEMPERATURE   LUMEN MULTIPLIER
    0℃ 32℉ 1.02
    10℃ 50℉ 1.01
    20℃ 68℉ 1.00
    25℃ 77℉ 1.00
    30℃ 86℉ 1.00
    40℃ 104℉ 0.99
    50℃ 122℉ 0.98

    Specifications
    Item description Parameter
    Dimensions [mm]  720*280* 120 (L*W*H)
    Input voltage [VAC]  100-277VAC
    Input frequency [HZ] 50/60
    Inqut current [A]  0.48(220V)
    Input watt[W] 100±5%
    Power factor >0.9
    Voltage [V] 30
    Current(reference) [A] 3.0
    Wattage(reference) [W] 90±5%
    Power efficiency ≥90%
    Luminous flux [Lm] 13000
    Colour temperature [K] 3000-6500
    Colour rendering index [Ra] ≥70
    Lumen maintenance(2000h) [%] ≥98
    Average life [h] 50000
    Net weight [Kg] 3.9/(set)
    Gross weight [Kg] 4.6/(set)
    Quantity [set]  1
    Work environmental temperature [℃] -40℃ - 50℃
    Beam Angle [H,V] 80* 140
    Dimension of master carton [cm]  76*28.5*14.4
