Custom stability Anticorrosion LEDMZ3 LED Street Light

Home / Product / LED Street Light / stability Anticorrosion LEDMZ3 LED Street Light

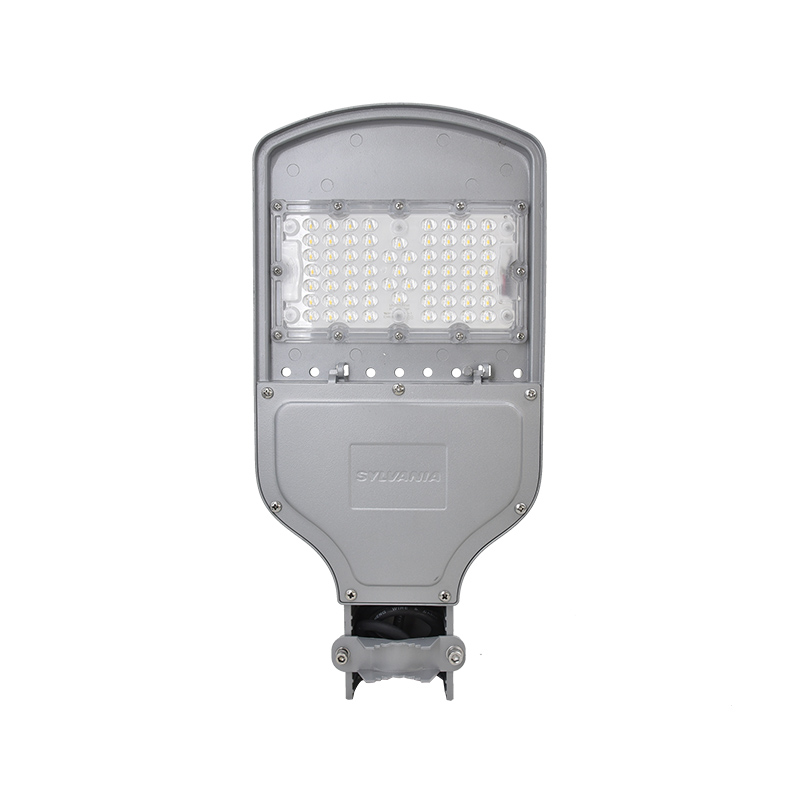

stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light
  • stability Anticorrosion LEDMZ3 LED Street Light

stability Anticorrosion LEDMZ3 LED Street Light

PRODUCT DESCRIPTION:
ADC12 Cast Aluminum Shell, Integrative Design of full Lamp. simple and beautiful appearance strong heat dissipation performance,convenient bottom installation design.

Specification Features
1. Lens module with high transparency could control different beam angles effectively and ensure balanced light.
2. Aluminum PCB with high thermal conductivity as chip carrier for faster cooling.
3. High-class IED chip to ensure good reliability and consistency.
4. All adopt superior stainless steel nuts.
5. Die-casting shell brings prefect heat dissipation,Simple&perfect appearance.
6. Firm die-casting aluminum light body,module structure with variable power.
7. Aluminum profile structure with excellent heat dissipation.
8. Using famous brand LG chips to ensure good reliability and consistency.
9. Using pc lens to adjust beam angle.
10. Energy-efficient, about double to triple of the metal lamp or the sodium lamp.
11. Shell protection:IP65.
12. Hight quality driver,safety and reliable.
13. Option: 1 )Motion sensor;2)Photocell.
Contact Us Shopping Cart Inquiry Download
  • Photometrics


    Product Size



    Led Street Light Module 3parameter Table
    Item description LEDMZ3LD20W001C LEDMZ3LD30W001C LEDMZ3LD40W001C LEDMZ3LD50W001C LEDMZ3LD60W001C LEDMZ3LD70W00ll
    Input voltage/frequency [VAC][HZ] 100-277VAC 50/60HZ
    Input current [A] 0.07-0.2 0.1-0.3 0.13-0.4 0.16-0.5 0.2-0.6 0.23-0.7
    Input watt [W] 20±5% 30 ±5% 40±5% 50±5% 60±5% 70±5%
    Power factor [email protected] [email protected] [email protected] [email protected] [email protected] [email protected]
    Voltage [V] 72 72 42 42 42 42
    Current(reference) [A] 0.23 0.37 0.83 1.07 1.27 1.51
    Wattage(reference) [W] 16.5±5% 26.5 ±5% 35 ±5% 45 ±5% 54 ±5% 61±5%
    Power efficiency 0.88 0.88 0.88 0.9 0.9 0.9
    Luminous flux [Lm] 2700 4050 5400 6750 8100 8580
    Colour temperature [K] 2700-6500
    Colour rendering index [Ra] 70
    Lumen maintenance(2000h) [%] 98
    Beam angle [H, V] TYPE II
    Average life [h] 54000
    Ambient temperture -25℃-40℃
    Material ADC12
    Storage environment -40°C-85℃ RH10%-95%
